Located in mining-friendly San Bernardino County, California, Apollo’s Calico Project combines the Waterloo and Langtry silver properties under one common ownership for the first time.

OVERVIEW

The Calico Project (“Calico” or the “Project”), comprising the adjacent Waterloo and Langtry properties, is located in the historic Calico Silver Mining District in the Mojave Desert of San Bernardino County, California. Under Apollo, the two properties have been combined for the first time. These represent a district-scale mineral system endowment with approximately 6,000 metres (19,680 feet) in mineralized strike length. The Calico Project hosts low-sulfidation epithermal-vein type and disseminated-style silver-barite mineralization, which is open to depth and along strike. Previous operators completed more than 42,000 metres (138,094 feet) of drilling across 438 holes on the Project.

Apollo recently announced an updated mineral resource estimate (“MRE”) for the Calico Project (the “2023 MRE”), which now contains 110 million ounces (Moz) silver in 34.2 million tonnes (Mt) at an average grade of 100 grams per tonne (g/t) silver in Measured and Indicated category, and 0.72 Moz silver in 0.29 Mt at an average grade of 77 g/t silver in the Inferred category all at Waterloo. The Langtry mineral resource estimate remains unchanged from that defined in the 2022 mineral resource estimate.

In addition to its robust silver resource, the Waterloo resource now contains 70,000 ounces of oxide gold contained in 4.5 Mt at an average grade of 0.50 g/t gold in the Inferred category.

The Calico Project 2023 MRE has been prepared by Derek Loveday, P. Geo., of Stantec Consulting Services Ltd. (“Stantec”), who is an independent “qualified person” as such term is defined in NI 43-101 (a “Qualified Person”), in co-operation with Mariea Kartick, P.Geo. (an independent Qualified Person for drilling data quality control and quality assurance). The 2023 MRE was produced in conformance with the Canadian Institute of Mining Metallurgy and Petroleum (“CIM”) “Estimation of Mineral Resource and Mineral Reserves Best Practices” guidelines and are reported in accordance with NI 43-101. The 2023 MRE has an effective date of February 8, 2023. Mineral resources are not mineral reserves and do not have demonstrated economic viability. There is no certainty that any mineral resource will be converted into a mineral reserve.

PROJECT LOCATION AND ACCESS

The Calico Project is well-placed relative to infrastructure and is located in the mining-friendly jurisdiction of San Bernardino County. The Project comprises the adjacent Waterloo and Langtry properties, which total 2,950 acres. The Project is 15 kilometres (9 miles) from the city of Barstow and has an extensive private gravel road network spanning the property. There is commercial electric power within 5 kilometres (3 miles) of the Project.

Other mines of note in the region include SV Minerals Searles Lake Boron project, MP Materials Mountain Pass rare earth element mine and Equinox Gold’s Castle Mountain gold mine. Rio Tinto’s Boron mine is near the border with San Bernardino County, in Kern County.

TENURE

The Calico District claims comprise the Waterloo and Langtry properties, combined consisting of

0
Patented Claims
0
Fee simple land parcels
0
Unpatented lode mining claims (19 Waterloo and 38 Langtry)

Private lands at both Waterloo and Langtry have received a Certificate of Land Use Compliance, vesting surface mining rights, which simplifies certain permitting processes. The unpatented claims on BLM-managed public lands are open for mineral entry, and no monuments, preserves or national parks encroach on these lands.

WATERLOO PROPERTY

The Waterloo property comprises 27 fee simple land parcels (1,352 acres) and 21 unpatented claims (19 lode mining, 2 mill site claims) (418 acres). These were acquired by Apollo through an Asset Purchase Agreement between Stronghold Silver USA Corp., a wholly-owned subsidiary of Apollo and Pan American Minerals Inc. (“Pan American”; a wholly-owned subsidiary of Pan American Silver Corp.), that closed July 13, 2021. Pan American retains a 2% Net Smelter Royalty on the property.

LANGTRY PROPERTY

The Langtry property comprises 20 patented claims (413 acres) and 38 unpatented lode mining claims (767 acres). The Project is under option between Stronghold Silver USA Corp., a wholly-owned subsidiary of Apollo, and the Bruce and Elizabeth Strachan Revocable Living Trust for the patented claims, and Athena Minerals Inc. for the unpatented claims.

CALICO PROJECT MINERAL RESOURCE ESTIMATE​

The Calico Project is comprised of two separate resources: the Waterloo Property and the Langtry Property. The 2022 program focused on the Waterloo Property.

The Waterloo resource contains 110 million ounces (Moz) silver in 34.2 million tonnes (Mt) at an average grade of 100 grade per tonne (g/t) silver in Measured and Indicated category, and 0.72 Moz silver in 0.29 Mt at an average grade of 77 g/t silver in the Inferred category. The Langtry MRE remains unchanged from that defined in the 2022 mineral resource estimate.

In addition to its robust silver resource, the Waterloo resource now contains 70,000 ounces of oxide gold contained in 4.5 Mt at an average grade of 0.50 g/t gold in the Inferred category.

The Calico Project 2023 MRE was prepared by Derek Loveday, P. Geo., of Stantec Consulting Services Ltd. (“Stantec”), who is an independent “qualified person” as such term is defined in NI 43-101 (a “Qualified Person”), in co-operation with Mariea Kartick, P.Geo. (an independent Qualified Person for drilling data quality control and quality assurance). The 2023 MRE was produced in conformance with the Canadian Institute of Mining Metallurgy and Petroleum (“CIM”) “Estimation of Mineral Resource and Mineral Reserves Best Practices” guidelines and are reported in accordance with NI 43-101. The 2023 MRE has an effective date of February 8, 2023. Mineral resources are not mineral reserves and do not have demonstrated economic viability. There is no certainty that any mineral resource will be converted into a mineral reserve.

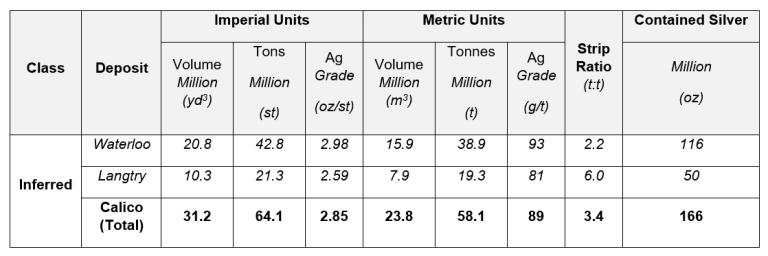

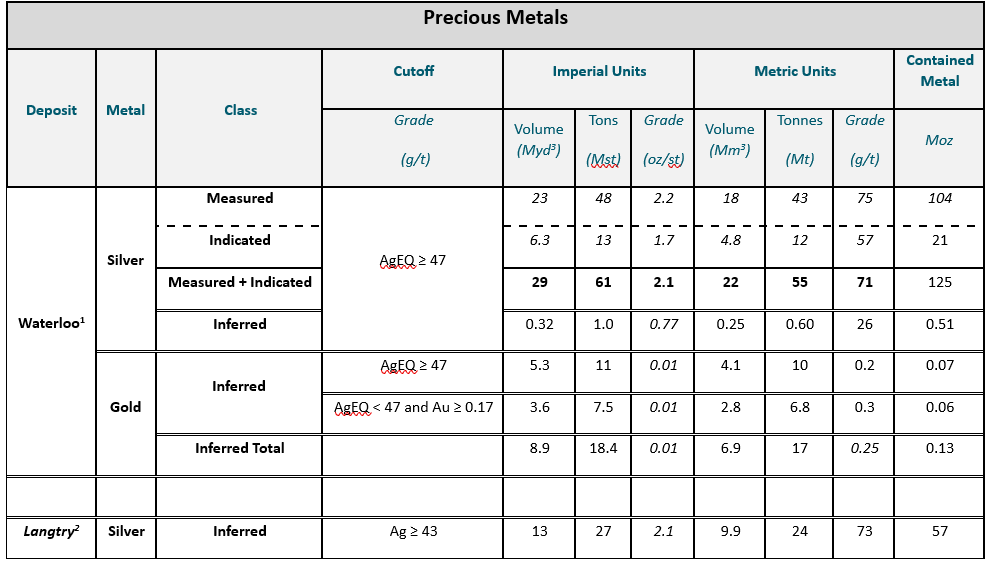

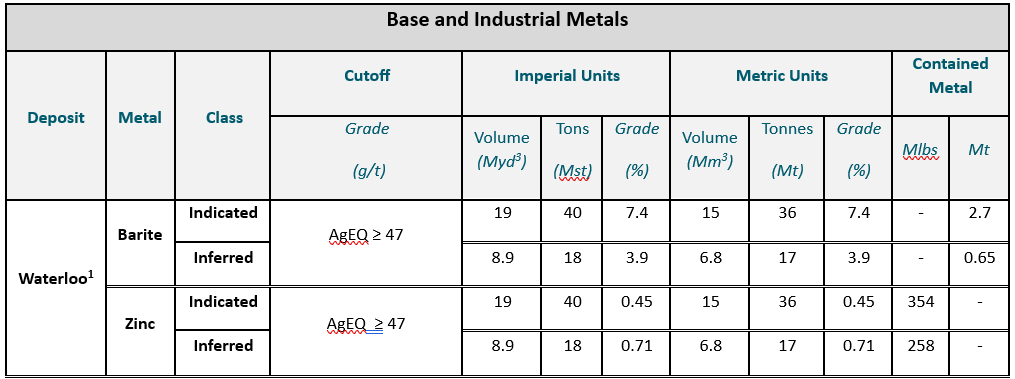

Calico Project Inferred Mineral Resource Estimate at a 50 g/t Ag and 0.3 g/t Au Cut-Off Grades. Effective February 8, 2023.

  • Ounces reported as troy ounces.
  • Base-case resource estimate reported in Table 1 using 50 g/t silver and 0.30 g/t gold cut-off grades (COG).
  • CIM definitions are followed for classification of the mineral resource.
  • For the Waterloo Property, cut-off grade was calculated using the following variables: surface mining operating costs (US$2.75/st), processing costs (US$20.00/st), general and administrative costs (US$3/st), silver price (US$23.50/oz), gold price (US$1,800/oz), and metal recoveries (silver 65%, gold 80%). Resources reported in Table 1 are constrained to within a conceptual economic pit shell targeting mineralized blocks with a minimum of 50 ppm (50 g/t) silver and 0.3 ppm (0.30 g/t) gold. Specific gravity for the mineralized zone is fixed at 2.44 t/m3 (13.13 ft3/st). Silver grade was capped at 450 g/t and gold was capped at 2 g/t for the Waterloo estimate only.
  • Totals may not represent the sum of the parts due to rounding.

1The 2023 MRE has been prepared by Derek Loveday, P. Geo., of Stantec Consulting Services Ltd., an independent Qualified Person, in co-operation with Mariea Kartick, P.Geo. (independent Qualified Person for drilling data QA/QC). The 2023 MRE was produced in conformance with NI 43-101. Mineral resources are not mineral reserves and do not have demonstrated economic viability. There is no certainty that any mineral resource will be converted into a mineral reserve.

2No drilling was completed on the Langtry Property since the declaration of the 2022 MRE and as such, the Inferred mineral resource announced February 9, 2022 for the Langtry Property remains unchanged and current. The 2022 MRE was prepared by Derek Loveday, P. Geo. Of Stantec, an independent Qualified Person. Cut-off grade for the Langtry 2022 MRE was calculated using surface mining operating costs of US$2.50/st, processing costs of US$29.00/st, silver price of US$23.00/oz and silver recovery of 80%. The Langtry resource is constrained to within a conceptual economic pit shell targeting mineralized blocks with a minimum of 50 ppm (50 g/t) silver.

For more information regarding the Calico MRE please see the following:

GEOLOGY

The Calico District is situated in the Calico Mountains of the Mojave Desert, in the west-central part of the Basin and Range tectonic province. The Calico Mountains consist of a 15 kilometre (9 mile) long northwest-southeast trending range dominantly composed of Tertiary (Miocene) volcanics, volcaniclastics, sedimentary rocks and dacitic intrusions.

The Calico Mountains form an uplifted block in a wedge-shaped zone between three major fault systems: the San Andreas Fault, the Death Valley Fault and the Garlock Fault.​

Silver mineralization is associated with mid-Tertiary volcanic activity and northwest-trending fracture zones. Tertiary geologic units in the Calico area are the Pickhandle Formation (volcanic flows, breccias and volcaniclastics primarily of dacitic to andesitic composition) and Barstow Formation (sediments deposited in a shallow lake environment), overlain by the younger (Plio-Pleistocene) Yermo Formation.

Mineralization at Calico occurs as discrete NW and EW striking, high-grade silver-barite veins (primarily hosted in the Pickhandle formation) and broad disseminations and veinlet stockworks (primarily hosted in the Barstow sandstones). Both styles are believed to have formed from a common event, with the host rock controlling the style of mineralization. The timing of mineralization is ~15-20 Ma which aligns with a period of subduction and extension in the region.​

TECHNICAL REPORTS

Cherty sandstone with thick barite vein in the Barstow Formation. This is the common host of disseminated silver mineralization at Calico.

HISTORY OF THE CALICO DISTRICT

Silver rich mineralization was discovered in the Calico mountains in 1881 with later extraction focused on high-grade oxidized deposits of vein-related silver. At its height of silver production between 1883 and 1896, Calico had over 50 mines and a population of 1,200 people. Historical estimates of total extracted silver up until 1896 are estimated to be between 15 and 20 Moz (Harthrong, 1983). Most mining of silver ceased in 1896 due a sharp decline in silver prices and an economic depression, with only limited production continuing until the 1930’s. One of the major silver producers in the district was the Waterloo silver mine, which is located on the Calico Project.

Barite became a mineral of interest in the region in the 1950’s as oil and gas exploration ramped up in the US. There was a concurrent reopening of silver mining, but production remained low. The Leviathon mine near the Langtry property was the largest barite producer on the west coast between 1957-1961. Numerous past-producing mines and historical workings are in the vicinity of the Waterloo and Langtry properties.

More modern exploration commenced on the Waterloo property in 1964, when the American Smelting and Refining Company (“ASARCO”) acquired an interest. ASARCO completed a significant amount of technical work including surface sampling, mapping, trenching, drilling and metallurgical testing. They completed an Environmental Impact Assessment report and feasibility in 1980, ultimately receiving a permit to mine. The decline of silver prices at the time resulted in a half of activities and put the project on care and maintenance. Pan American Minerals Inc. (a wholly-owned subsidiary of Pan American Silver Corp.) acquired an initial interest in the project in 1994, acquiring a 100% interest in 1996. Between 2008 and 2012, Pan American completed both reverse circulation and core drilling.

Waterloo Mills 1880s c/o Norman Feldhym Museum
Waterloo Mule Team c/o Orange County Archives
Waterloo Ore Bin c/o Norman Feldhym Museum

At Langtry, records show the property was acquired by an agent of Superior Oil Corp. (“Superior”) in 1966, with discovery of the disseminated silver mineralization occurring around 1967. Exploration by Superior from 1967 to 1984 consisted of geological mapping, geochemical sampling, surface trenching, drilling and metallurgical testing. Superior was subsequently purchased by Mobil Corporation and the Langtry property sat dormant due to depressed silver prices until the Strachan family acquired the private lands in 2004. Athena Minerals Corp. (“Athena”) acquired interest in the unpatented claims surrounding the private lands in 2010. A joint venture between Athena and the Strachan family saw a program of surface sampling, trenching and drilling completed by Athena in 2012. A total of 213 drillholes (26,200 metres/86,000 feet) is reported to have been completed on the Langtry Property by the previous operators. Of these, Apollo has audited data for 183 holes, 23,465 m (76,986 ft) which were used for the maiden Calico Project mineral resource estimate.
